Winchester射頻微波BNC系列連接器

發布時間：2022-01-17 17:06:18 瀏覽：1110

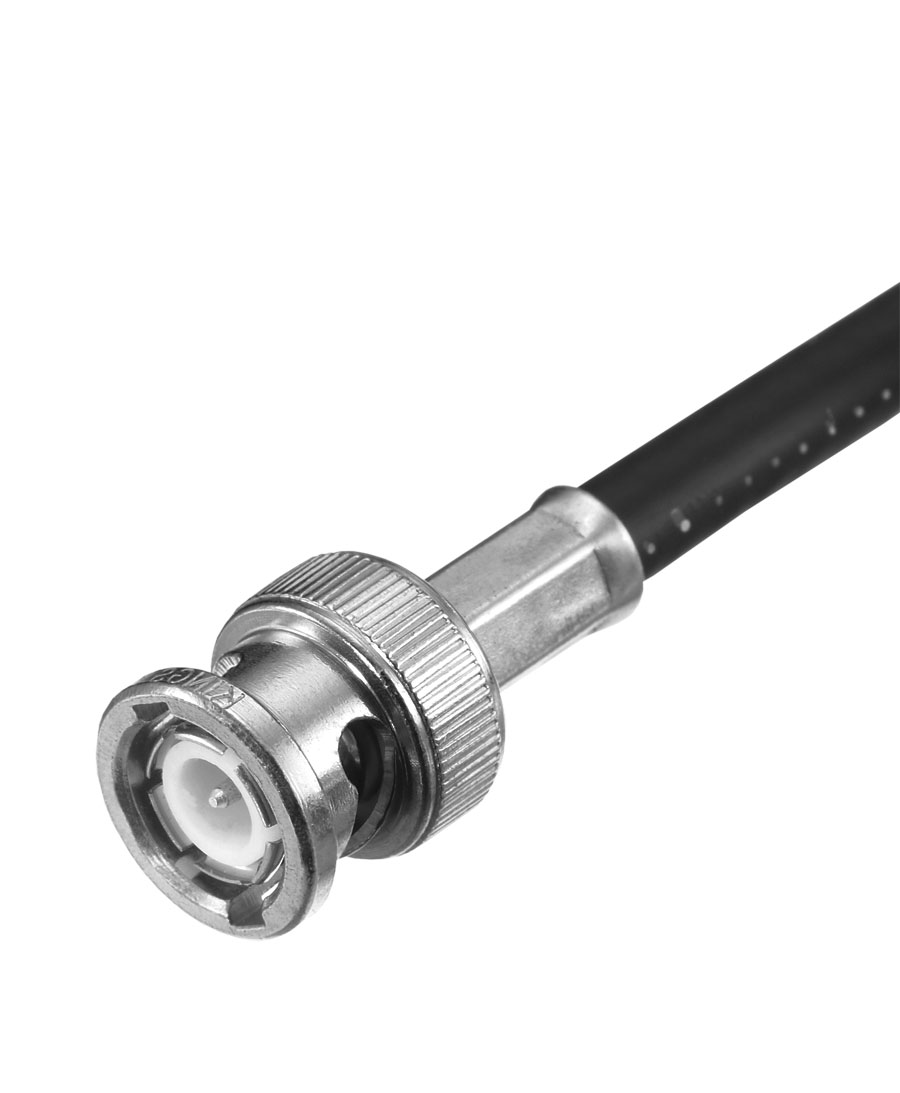

BNC連接器是用于射頻終端同軸電纜的連接器。全稱為Bayonet Nut Connector（刺刀螺母連接器）。BNC電纜連接器由中心銷、外套管和支架組成，包括BNC連接器底座、外套管和探頭。由于同軸電纜的廣泛應用，BNC連接器在通信系統中也得到了廣泛的應用，例如，網絡設備中的E1接口通過同軸電纜與兩個BNC連接器連接。還經常用于在高端顯示器和音頻設備中傳輸音頻和視頻信號。

Winchester是一家高可靠性連接器制造廠商，具備AS9100和AS7003航空航天質量體系認證，為全球客戶提供同軸線纜、微波連接器產品。其產品被廣泛應用于軍用、航空航天、通信測試領域。

深圳市立維創展科技有限公司，授權代理Winchester連接器產品，歡迎咨詢。

詳情了解Winchester請點擊：/brand/79.html

或聯系我們的銷售工程師：0755-83642657 QQ: 2295048674

Part #	Description	Max Frequency
TRU-12824	BNC(m) to QDS(f) Right Angle Adapter	4 GHz
TRU-11705	BNC(m) REPLACEABLE CONNECTOR	4 GHz
TRU-11706	BNC(f) REPLACEABLE CONNECTOR	4 GHz
TRU-11694	BNC(f) TO SMA(m) Adapter, Straight	4 GHz
TRU-11695	BNC(m) TO N(f) Adapter, Straight	4 GHz
TRU-11696	BNC(m) TO N(m) Adapter, Straight	4 GHz
TRU-11697	BNC(m) TO N(f) Adapter, Right Angle	4 GHz
TRU-11698	BNC(f) TO N(m) Adapter, Straight	4 GHz
TRU-11699	BNC(m) TO BNC(m) Adapter, Straight	4 GHz
TRU-11700	BNC(f) TO BNC(f) Adapter, Straight	4 GHz
TRU-11693	BNC(f) TO SMA(f) Adapter, Straight	4 GHz
TRU-11691	BNC(m) TO SMA(m) Adapter, Straight	4 GHz
TRU-11692	BNC(m) TO SMA(f) Adapter, Straight	4 GHz
SBC8281	BNC BROADCAST GRADE BELD 8281	4 GHz
361P704	BNC Vertical PCB Jack 75OHM TEF	4 GHz
361ES504EFT	E-SNAP BNC Female 50 OHM	4 GHz
351A505	Adapter, BNC Right Angle J/P	4 GHz
335R544	Adapter, BNC ISOLATED Bulkhead F/F	4 GHz
335A544	Adapter, BNC Bulkhead J/J	4 GHz
332A705	Adapter, BNC F/F BARREL 75 OHM	4 GHz
3319505	Adapter, BNC Male TO SMA FEMAL	4 GHz
3318505	Adapter, BNC Plug TO F Jack	4 GHz
3309505	Adapter, BNC Male TO SMA Male	4 GHz
326R515	BNC ISOLATED Bulkhead Jack	4 GHz
310A205FS	BNC Cable Plug (RG58 SOLID)	4 GHz
310A205F	BNC Cable Plug, RG58 (STRANDED)	4 GHz
364A2595	X-2 DUAL BNC Jacks Right Angle WHITE	4 GHz
361VH704EFT	BNC V-BITE Female-4GHZ	4 GHz
361V704ER	BNC V-BITE,75 OHM,TEFLON,GOLD PIN	4 GHz
364M795L	BNC Right Angle PC Jack-METAL LO-PROFI	4 GHz
364M595L	BNC Right Angle PC Jack, LOW PROF METAL	4 GHz
364M595	BNC Right Angle PC Jack, STD PROF METL	4 GHz
364M2795	X-2 DUAL BNC Right Angle Jacks METAL 75 OHM	4 GHz
364M2595	X-2 DUAL BNC Right Angle PCB Jacks METAL	4 GHz
364A795BL	BNC Right Angle PC Jack, 75OHM,LOWPD,WHT	4 GHz
372B006	BNC CAP & CHAIN	4 GHz
364A595BLB	BNC Right Angle PC Jack, LOW PROF BLK	4 GHz
364A595BL	BNC Right Angle PC Jack, LOW PROF WHT	4 GHz
364A595B	BNC Right Angle PC Jack, STD PROF BLK	4 GHz
364A595	BNC Right Angle PC Jack,STD PROF WHT	4 GHz
364A2795B	X-2 DUAL NC Jacks Right Angle BLK	4 GHz
361VH704ER	BNC V-BITE NON THD,4GHZ REFLOW	4 GHz
364A2795	DUAL BNC Right Angle PCB Jacks 75 OHM	4 GHz
364DI2595	DUAL BNC 50 0HM DBL-ISOL	4 GHz
364S595M	50 Ohm BNC Jack - Vertical Mount Bulkhead	4 GHz
364M2795FS	X-2 DUAL BNC METAL FULL SHLD 75 OHM	4 GHz
361V504EFT	BNC V-BITE W/Flange & THD 50 OHM	4 GHz
361V504EFT100	50 OHM V-BITE, 100 THICK PCB	4 GHz
361V504ER	BNC V-BITE For REFLOW SolderING	4 GHz
361V504ET	BNC V-BITE, 50, THREADED, TFE/GOLD	4 GHz
